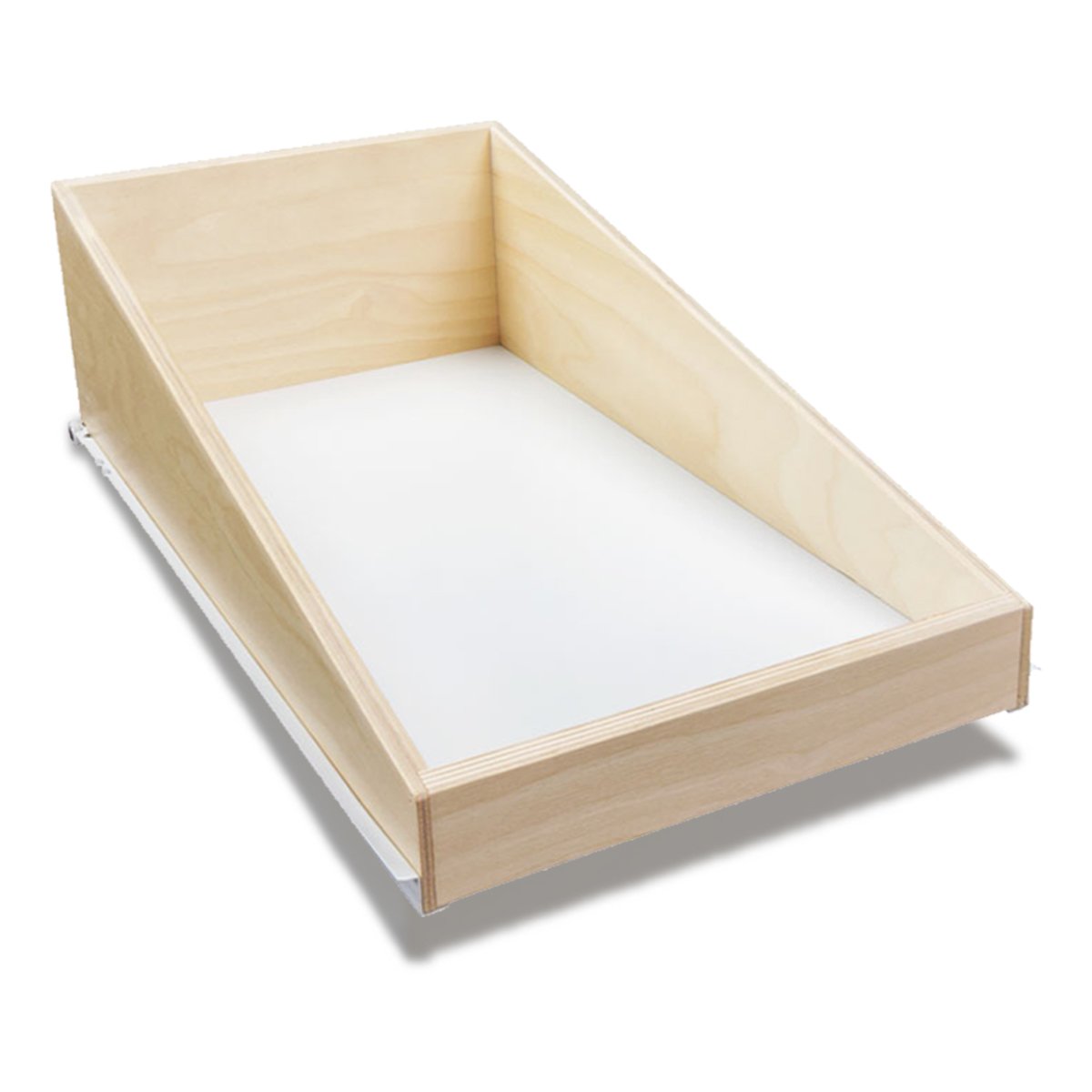

Slanted Pullout

The Slanted Pullout is the perfect addition to your pantry! Its short front allows for easy access to your items, while the tall backs ensure that bottles and vases stay securely in place.

What’s Included:

• Custom Pullout Shelf
• Complete set of selected slides
• Mounting hardware for the selected mounting style
• 1 or 2 door protectors per shelf (1 protector for shelves under 19″ wide)
• 10 wood mounting screws per shelf (5/8″ long)

Clear Opening Width

This refers to the available space between the narrowest two points of your cabinet’s opening where the shelf will be installed, accounting for any protruding hinges, doors, face frames, etc. Typically, the lower pullout shelf is slightly narrower than the upper due to hinge interference at the bottom. If you have a frameless cabinet, you may need to deduct for the L brackets used by the base or half shelf mounting styles.

Note: Do not measure existing pullout shelves or drawers to obtain the clear opening width.

Shelf Depth

Select the shelf depth that fits inside your available cabinet interior depth, behind any doors or framing. This represents the actual length of the pullout shelf. If you choose the rear socket mounting style, it may add an extra 1/4″ to the shelf depth selection, so please allow for this when ordering.

Note: Do not select a depth size larger than your interior cabinet depth.

Mounting Styles

Base Mount

Mounts on top of any existing surface, such as the bottom/floor of the cabinet or a full fixed/adjustable shelf.

Half Shelf Mount

Utilizes a half shelf in the back of the cabinet or an existing shelf that’s more than 2″ shorter than the cabinet depth.

Side Mount

For mounting an upper shelf without an existing fixed/adjustable shelf. Attaches to the interior sidewalls using a spacer or wood strip to ensure the pullout can slide through the opening.

Rear Socket Mount

Similar to the Side Mount, but the rear of the shelf will be attached to the cabinet’s back wall.

The Half Shelf, Side Mount, and Rear Socket mounting styles all attach to the face frame or sides of the cabinet at the front, with the rear attachment being the only difference.

Please note: Spacers are not automatically included but can be found in our Hardware Section.

Specifications

• Height: 2 3/8″ Front / 7 3/8″ Back
• Depth: From 11 3/4″ to 25 3/4″ (in 2″ increments)
• Capacity: 100 lbs.
• Wood: 1/2″ 9-ply Birch sides / 1/4″ MDF bottom
• Finish: 2-coat clear lacquer finish
• Joints: Rabbet corners / Dado bottom
• Warranty: Lifetime / 5 Years with [BB] Full Extension slides**

Your shelf is custom made to order in the USA and usually ships in about 2 weeks.
